Most All Scoops
 Shipped  via UPS







SC-225 5" Cowl Scoop with wide 29-1/2" base
50" Long.   Also available in 56" length. (SC-285)






Scoops.....Cowl Induction
You are on Page #1 of Scoops
Toll Free (877) 735-7772 (7:00 to 4:30 Pacific Time) Mon-Fri


PR-702      63" long 7" high







Aero Scoops #2--> ScoopsPage2.gif (2248 bytes)       Older style scoops #3--> ScoopsPage3.gif (3505 bytes)
Click Here----> Scoop Install Procedure








    SC403           SC404         SC203        SC-1153      SC-1263

Part
No.

Click on Photo for detail Scoops Shipping
Notes
Racer Net ($) Buy
Click on BUY button to order
SC-101 TEARDROP BUBBLE (FORD THUNDERBOLT) (23" Wide) ups 70.00
SC-102 SC-102 HEMI-CUDA (68 CUDA & DART SUPER STOCK, NOT SHAKER)(26" Wide) 2" high in rear ups 75.00
SC-1023 SC-102 HEMI-CUDA (68 CUDA & DART SUPER STOCK, not shaker, with inside flange (26" Wide) 2" high in rear ups 129.95

SC-103 RAM AIR (AMX)(16" Wide) ups 50.00
SC-104 427 CORVETTE(22" Wide) 1967 Style Vette Scoop ups 65.00
SC-105 COBRA-JET '69 MACH I(15" Wide) ups 49.00
SC-106 MOPAR (63-64 RAMCHARGER, MAX WEDGE, NOT SNORKEL)(20" Wide) ups 49.00
SC-106-3 MOPAR (63-64 RAMCHARGER, MAX WEDGE, NOT SNORKEL)(20" Wide), has inside flange for mounting, bolts will not show ups 89.95
SC-107 Shelby style (65-66 Shelby Mustang) (12" Wide x 27" Long) ups 39.00
SC-207 Late Model Mustang Scoop (12-1/2"  wide x 27" long), with bottom "internal" mounting flange ups 89.95
SC-108 COWL INDUCTION SCOOP 2 1/4" HI 49" LONG (22" Wide) ups 76.95
SC-109 COWL INDUCTION SCOOP 2 1/4" HI 56" LONG (22" Wide) ups 76.95
SC-113 COWL INDUCTION SCOOP 3 1/4" HI 56 LONG (22" Wide) ups 76.95
SC-114 COWL INDUCTION SCOOP 3 1/2" HI 49" LONG (22" Wide) ups 76.95
SC-1143 NEW Item!
Cowl Induction Scoop 3 1/2" HI 54" LONG, with inside flange (23" wide at base, 21" wide at top). Has ridge along center.
ups 149.95 Call to order
SC-115 COWL INDUCTION SCOOP 4 3/4" HI 52" LONG (22" Wide) Has ridge along center. ups 89.95
SC-1153 NEW Item!
COWL INDUCTION SCOOP 4 3/4" HI 49" LONG, with inside flange (21" wide at top. 23 wide at bottom) Smooth top, no ridge.
Entire scoop has a slight curve (when looking at it from the side view, mid point is bowed up 5/8"), this allows it to set neatly on almost all hoods.
ups 139.95 Call to order

SC-116 COWL INDUCTION SCOOP 2 1/2" HI 44" LONG (15" Wide) ups 89.95
SC-117 COWL INDUCTION SCOOP, SAME AS SC-116 BUT 28" LONG ups 79.95
SC-124 COWL INDUCTION SCOOP 3-1/2" HI (Has inside mounting flanges) (23-1/2" Wide at base, 21" wide at top) 50-3/4" long. Has ridge down the center like the the early Camaro. ups 139.95
SC-126 "Outlaw" Cowl Induction Scoop 6" High (54" long) Has ridge along center. ups 139.95
SC-156 NEW Item!
Longer Version of the SC-126. 69" long x 24-1/2" wide. 6" high. With GM style ridge in center. (DC486)
(not UPS) 139.95 Call to order

SC-1263 New item! "Outlaw" Cowl induction scoop 6" tall. 53-1/2" long. 23-1/4" wide at base. 21" wide at top. With inside flange Entire scoop has a slight curve (when looking at it from the side view, mid point is bowed up 1-1/8"), this allows it to set neatly on almost all hoods. Smooth top, no ridge down the center ups 239.95 Call to order
SC-127 "Outlaw" Cowl Induction Scoop 7" High (54" long) (Not Ups) (Not Ups) 149.95 Call
SC-228 "New" Cowl Induction Scoop 8" high, 55" long, 24-3/4 wide (Not Ups) (Not Ups) 159.95 Call
SC-129 "Outlaw" Cowl Induction Scoop 9" High ( 59" long) (Not Ups) (Not Ups) 159.95 Call
SC-203 3-1/4" high Cowl induction scoop 24x53 smooth top (gm228) No Ridge ups 99.95
SC-225 NEW Item!
5" high X 21 wide. Base is 29-1/2" wide. Length is 50".  Has outer flange. These dimension do not include the outer flange. Newest Cowl Induction Scoop. Features wider base to clear newer induction systems. Has ridge down the middle.
(Not Ups) 149.95 Call to order
SC-2253   NEW Item!
5" high X 21 wide. Base is 29-1/2" wide. Length is 50". This scoop features an internal mounting flange. Newest Cowl Induction Scoop. Features wider base to clear newer induction systems. Has ridge down the middle.
(Not Ups) 245.00 Call to order
SC-285 NEW Item!
5" high X 21 wide. Base is 29-1/2" wide. Length is 56". Newest Cowl Induction Scoop. Features wider base to clear newer induction systems. Has ridge down the middle. This is a must have scoop for racing. It will extend to windshield on most cars.
(Not Ups) 179.95 Call to order
SC-328 Cowl Induction Scoop 2-1/4" HI 47" LONG (26" Wide) No Ridge (smooth top) Fits 87-92 Mustang ups 76.00
SC-402 2-1/4" High Cowl Induction x 41" long (82-93 S-10) with center ridge.
Curve: When placed on a flat surface, and viewed from the side, the center is bowed up between 1/2" to 3/4".
ups 89.00
SC-403 2-3/4" High Cowl Induction x 43" long (94-02 S-10 style) smooth top and front is curved to match 94-02 S-10 truck.
Curve: When placed on a flat surface, and viewed from the side, the center is bowed up between 1-5/8" to 2".
ups 89.00
SC-404 3-1/2" High Cowl Induction x 43" long (82-93 S-10) with center ridge.
Curve: When placed on a flat surface, and viewed from the side, the center is bowed up between 3/8" to 5/8".
ups 89.00
PR-702 NEW! Full Bubble, 63" long x 26" wide at high point. High point is 7" tall and is 29" from front. Rear is 4" high
This scoop was designed to be cut down or left full size to fit your turbos, throttle body or nitrous set-ups under the hood. Features superior aero-dynamic design. This can be installed on many of our hoods...call for pricing.
Truck 149.95 Call to order
SC-502 1955 Chevy, 2 Lane Black top Scoop. Internal flange for mounting to 55 hood.
14-1/2 Wide x 23 Long (at base) x 7-1/4 Hi. Scoop for 1955 Chevy two lane black top.
ups 129.95 Call to order

SC-IN   SCOOP INSTALLATION: We will install most scoops into our hoods.. approx. *$275 (call for exact quote) *175.00


Aero Scoops #2--> ScoopsPage2.gif (2248 bytes)
Older style scoops #3--> ScoopsPage3.gif (3505 bytes)

PICTURES AND FURTHER INFORMATION FOR
Scoops
can be viewed by scrolling down or clicking part number above.

ABOUT | TECH INFO | Q&A  | CATALOG | SHIPPING | CONTACT | HOW to ORDER
index.gif (1853 bytes) GetCatalog.gif (3117 bytes) ShipCharges.gif (2148 bytes) online3.gif (4005 bytes)

SC-101This is a full size replica of the original Ford Thunderbolt tear drop bubble. It features a full flange for attaching to the hood of your choice. Standard mounting is with openings to the rear, but can be mounted in either direction and the two air inlets are fully trimmed open. No screen is supplied.

  23" wide (24" including flange) 37-3/4" long
  3-3/8" high

SC-102This is your Hemi-Cuda scoop. It features an exterior flange to aid in mounting. This is not the Shaker scoop, and is to be mounted on the top of the hood, not to the carbs. 2" high clearance in rear.
Also available with "Inside Mounting Flange" (Part # SC-1023)
SC-1023 This is a modified version of the Hemi-Cuda scoop. It has the same dimensions as the SC102, but features an interior flange to aid in mounting. This is not the Shaker scoop, and is to be mounted on the top of the hood, not to the carbs. With the addition of special carb plates, this scoop can be used as a shaker. 2" high clearance in rear.

Similar dimensions as SC102, but no outer flange.

SC-1023 Bottom View Showing Internal Mounting Flange



SC-103
This scoop was original equipment on early AMX. It features a full 1 inch exterior flange for mounting. Most applications of this scoop are on flat hoods.

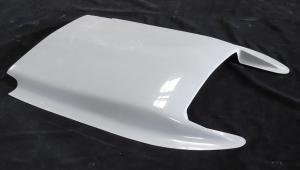

SC-104
 1967 Style Vette Scoop
Replica of the famous '67 Vette 427 Sting Ray scoop. It has a full open construction which allows air to enter from the front or rear. Quality hand laid fiberglass is used throughout to insure durability and ease of painting.


'67 Vette Style Scoop



SC-105
Replica of 69-70 Cobra Jet Mach-1 Mustang. It eliminates the turn signal lights which are mounted in the rear of the scoop. Full outside flange aids in riveting or bolting to your hood. This scoop can also be molded in for that finished look.


SC-106
This scoop was first found on 63-64 Mopar, Max Wedge or Ramcharger. Not a snorkel type, but this popular scoop features a full exterior flange for mounting to original steel or fiberglass hoods.
SC-106-3
This scoop was first found on 63-64 Mopar, Max Wedge or Ramcharger. Not a snorkel type, but this popular scoop features a full interior mounting flange for mounting to original steel or fiberglass hoods

   Same as SC106, but has inside mounting flange.
   Scroll up to see SC106
SC-107
Another popular scoop is this 65-66 Shelby Mustang style. Designed to be riveted or molded to the hood, it has an exterior flange for easy mounting.
Height is 1-1/4"
Width is 12" (14" including flange).
Length is 27" (28" including flange).

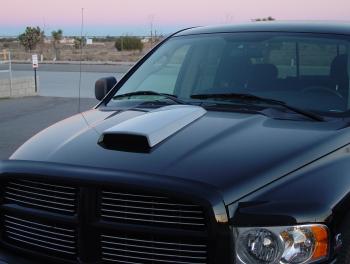

SC-207
Late Model Mustang Scoop. Close replica of similar scoops costing 3 times as much. Made from hand layup fiberglass, smooth gray gel coat finish for easy painting. Underside has 1-1/2" wide mounting flange. Mounting flange has 1/4" curve for mounting to late model Mustangs and others.
27" overall length
12-1/2" wide (overall width) in front.
11" wide at rear.
2" high in front.
1" high in rear.
Front opening is 10-1/4" wide

SC-207

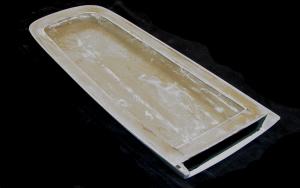

SC-207 Bottom View




Our Newest Scoop 27" long #SC-207
Features internal "Bottom" flange for easy mounting to most Mustang hoods and others. 2" hi and 12-1/2" wide.
$89.95


SC-328
This scoop is designed to fit the 87-92 Mustang hood. It is the same scoop that is on our MU728 hood. Height is 2 1/4. Overall length is 47". Overall width is 31" at the back (including outside mounting flange). Flange size is 1-1/4", leaving actual scoop width of 28". Scoop tapers toward the front, making width 22" at the front (including flange), leaving actual scoop width of 19" at the front.



SC-108
Our most popular scoop, this replica of the notorious Z28 Camaro cowl induction, features a full 2 1/4 inch height. Designed to be riveted or screwed on to an original steel hood, it can also be glassed and molded into any of our fiberglass hoods.
SC-109
This scoop features the same fine qualities as the SC108, but is an additional 6 inches longer. It is most commonly attached to larger hoods like 68 Fire-bird or 70-81 Trans-Am.
SC-113
Unlimited Product's exclusive. This cowl induction scoop offers 3 1/2 inches of rise, and with a length of 56 inches, it will cover most air cleaners. With this added height it allows user to move scoop toward windshield without interference with wipers. See SC114 for version that is 49 inches long.
SC-114
Another Unlimited Products exclusive. This scoop has been specially designed for mounting to shorter hoods like 67-69 Camaros. It has a full 3-1/2" height and will clear most high rise carburetor applications.
SC-1143 Has ridge along center.
SC-115
Cowl induction scoop at it's tallest: 4 3/4 inches high! Outside flange for riveting, bolting or bond-on mounting. This scoop features full hand laid fiberglass construction and has reinforced rear edge for rigidity. This scoop is an Unlimited Products exclusive. Edges are double thick to accept countersunk rivets for flush bonding to your hood. Edge length is 49", while overall length (including rear overhang) is 52".

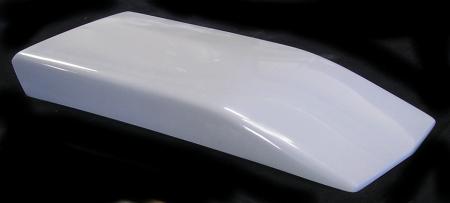

SC-1153  Smooth top.  4 3/4" HI 49" LONG, with inside flange (21" wide at top. 23 wide at bottom) Smooth top, no ridge. Entire scoop has a slight curve (when looking at it from the side view, mid point is bowed up 5/8"), this allows it to set neatly on almost all hoods.
Bolt kit and instructions included.

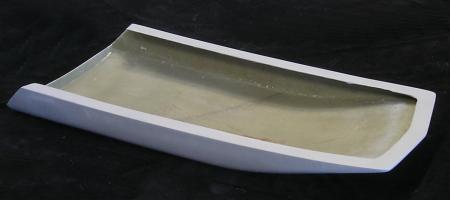

SC-1153 Bottom View

SC-203 3-1/4" hi

This Scoop is a copy off our GM-228 (hood for 73-80 Chevy pick-up). It features the exact curve to match the 73-80 Chevy truck hood. Overall width in the front is 24". This 24" includes the flanges. Actual scoop is 21-1/4" wide at front (not including flange).
Rear width is 27" at base (including flange). Actual scoop is 22" wide at rear / top.






SC-225
5" high X 21 wide. Base is 29-1/2" wide. Length is 50".  Has outer flange. These dimension do not include the outer flange. Newest Cowl Induction Scoop. Features Wider Base to clear newer induction systems. Has ridge down the middle.
SC-2253
5" high X 21 wide. Base is 29-1/2" wide. Length is 50". This scoop features an internal mounting flange. Newest Cowl Induction Scoop. Features wider base to clear newer induction systems. Has ridge down the middle.

SC-285
56" long,
5" high X 21 wide. Base is 29-1/2" wide. Has outer flange. These dimension do not include the outer flange. Newest Cowl Induction Scoop. Features Wider Base to clear newer induction systems. Has ridge down the middle.
SC-402  2-1/4" hi

This Scoop is a copy off our 82-93 S-10 Chevy pick-up hood (GM-828). It features the exact curve to match the 82-93 S-10 hood. Height is 2-1/4". Overall width in the front is 24". This 24" includes the flanges. Actual scoop is 21-1/2" wide at front (not including flange). Overall length 41 inches.
Rear width is 26" at base (including flange). Actual scoop is 21" wide at rear / top.
Curve: When placed on a flat surface, and viewed from the side, the center is bowed up between 1/2" to 3/4".





SC-403

This Scoop is a copy off our 94-02 S-10 Chevy pick-up hood (GM-483). It features the exact curve to match the 94-02 S-10 hood. Overall width in the front is 24". This 24" includes the flanges. Overall length 43 inches. Height is 2-3/4".
Rear width is 26" at base (including flange). Actual scoop is 21" wide at rear / top.
Curve: When placed on a flat surface, and viewed from the side, the center is bowed up between 1-5/8" to 2".





SC-404

This Scoop is a copy off our 82-93 S-10 Chevy pick-up hood (GM-883). It features the exact curve to match the 82-93 S-10 hood. Overall width in the front is 24-1/2". This 24-1/2" includes the flanges. Actual scoop is 21" wide at front (not including flange). Height is 3-1/2". Curve: When placed on a flat surface, and viewed from the side, the center is bowed up between 3/8" to 5/8".





SC-116
This is a fully bolt on cowl induction scoop. Internal 2" wide flange for easy mounting. It will cover up the hole in your hood that was cut to accommodate the #SC284 aero-scoop. (the SC284 also mounts with internal flange). Mounting bolts and instructions are supplied with this scoop.

SC-117
Short cowl induction scoop for bolt on applications.(28" long) Full inside flange for mounting to hood. bolts will not show. This is a shorter version of the SC116. Features smooth gel coat finish and can be easily painted to match car. Mounting bolts and instructions are supplied with this scoop.

SC-124
The newest version of our cowl induction scoop line. This scoop features full inside mounting flange for complete bolt on application (bolts will not show). Smooth gel coat finish and reinforced rear opening. Side profile features slight curve to match contour of the hood.

Overall width at front 22"
Overall width at rear 24-5/8" (not 26")
Overall length, down the middle 50-1/2"
Usable side length 44" (the part that will mount to the hood)
Internal flange dimensions 2-1/2 wide along sides. Mounting bolts and instructions are supplied with this scoop.





SC-124
Bottom view
SC-124
Entire scoop has a slight curve (when looking at it from the side view, this allows it to set neatly on almost all hoods, actual curve was taken from a 1969 Chevelle hood.
(the flange will not show)
Bolts and instructions are included.

Height:
3-1/2" tall at rear
At the 22" point (as measured from the front), it is only 3-1/4" tall.
These heights are the actual internal clearances also (as measured in down the middle of the scoop).
SC-126 "Outlaw" Cowl induction scoop.
Full 6" high. Cowl induction scoop for clearing high rise carburetor applications. Features external mounting flange for easy mounting to hood.

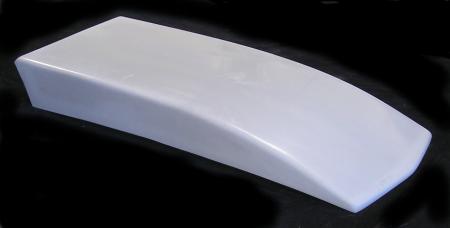

SC-1263 Smooth top, no ridge. Entire scoop has a slight curve (when looking at it from the side view, mid point is bowed up 1-1/8"), this allows it to set neatly on almost all hoods.
Bolt kit and instructions included.

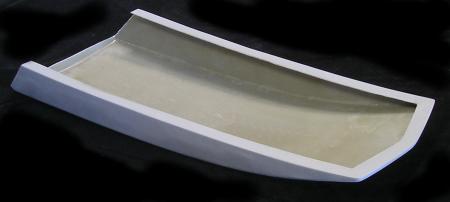

SC-1263 Bottom View

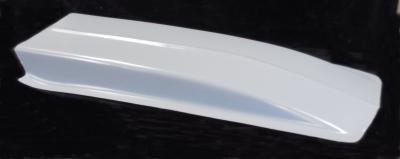

SC-156
"High Rise-Outlaw"
A full 6 inches high and 69" long, with GM style ridge


SC-127   "High Rise-Outlaw"
A full 7 inches

tall !
This item is too large to be shipped by UPS. We have excellent truck freight rates on this item.

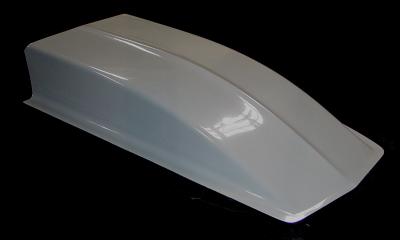

SC-228 8" Cowl induction scoop.
Full 8" high. Cowl induction scoop for clearing high rise carburetor applications. Features external mounting flange for easy mounting to hood.
24-3/4 Wide X 55" Long.



Diagram coming
SC-129 "High Rise-Outlaw"  A full 9 inches tall !
20" wide at the Top, 26" at the Bottom (Not including flange.)
This item is too large to be shipped by UPS. We have excellent truck freight rates on this item.

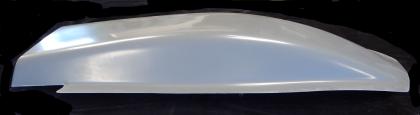

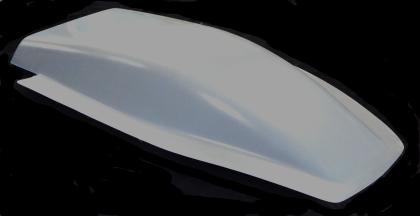

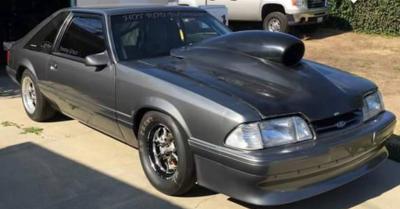

PR-702 Full Bubble
 63" long x 26" wide at high point. High point is 7" tall and is 29" from front. Rear is 4" high.


 High point is 7" tall and is 29" from front. Rear is 4" high


This scoop was designed to be cut down or left full size to fit your turbos, throttle body or nitrous set-ups under the hood. Features superior aero-dynamic design. This can be installed on many of our hoods...call for pricing.


SC-502
1955 Chevy, 2 Lane Black Top Scoop. Internal flange for mounting to 55 hood. 14-1/2 Wide x 23 Long (at base) x 7-1/4 hi
Front bottom of flange is notched to fit ridge on '55 hood.





Aero Scoops #2--> ScoopsPage2.gif (2248 bytes)
Older style scoops #3--> ScoopsPage3.gif (3505 bytes)

 UP22.com the web's giant-giant site for quality fiberglass. Customers agree, fit, price, quality all come together at UP22.com. Please visit UP22.com frequently to see updates, specials and new items. Or visit our factory in Hesperia CA. You can pick up items (call ahead) or just browse our huge factory. You can request to see our lay-up shop and see how our products are made! New scoops are being added to our product line. Check with UP22.com

Click Here----> Scoop Install Procedure
