VEGA 71-77

Scroll down or click on part number for pictures and further information
Unlimited Products (760) 948-0055
Toll Free (877) 735-7772 (7:00 to 4:30 Pacific Time) Mon-Fri

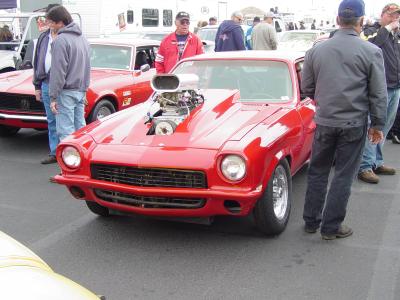

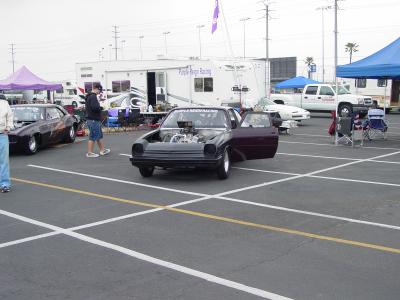

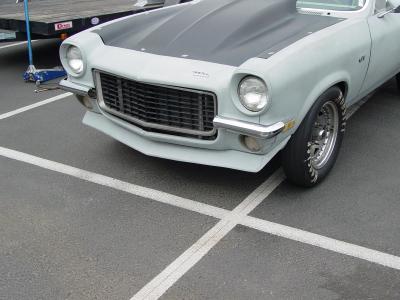

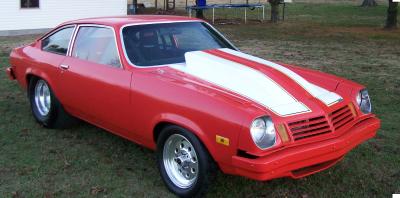

Many customers send in photos of the cars and trucks
 With our products installed and painted.
 We are continuously adding more photos.

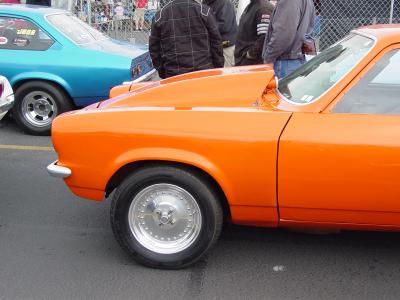

9" Cowl Scoop (V-189)












       10" cowl hood V-18X-T




V128 (2-1/4" Cowl Induction Hood)



Part
No
1971 - 1977 Vega Notes Racer
Net
($)
Wt
(Lb)
*
V-101 71-77 Stock Hood, pin rear, front has bolts P 220.00 18
V-128 2-1/4 Hood with Z-28 cowl induction scoop, Pin P 230.00 19
V-185 4-3/4" high Cowl induction hood, Pin H 289.00 20
V-186 6 inch high Cowl induction hood, Pin H 379.00 22
V-187 7 inch high Cowl induction hood, Pin H 379.00 23
V-189 9 inch high Cowl induction hood, Pin H 430.00 25
V-18X 10 inch high cowl induction hood for 1971 to 1977 Vega H 599.00 27
V-127 HOOD WITH 5" SNORKEL, Pin P 345.00 22
V-127AT HOOD WITH AT475 AERO TOP SNORKEL 7" HIGH, Pin P 365.00 22
V-132 HOOD WITH 9" 3-DEGREE WINDSHIELD SCOOP(V132 HAS SCOOP AT 24" FROM BACK OF HOOD (V132 HAS 7" HIGH CARB CLEARANCE AT BACK OF HOOD), Pin P 399.00 26
V-286 HOOD WITH AERODYNAMIC SCOOP ATTACHED 8" HIGH, Pin   499.00 28
V-486 HOOD WITH AERODYNAMIC SCOOP (SC204) ATTACHED 8", Pin   499.00 28
V-202R&L 74-77 FRONT FENDERS (ups ok) Each 169.00 7
V-210R&L 71-77 DOORS WITH INNER STRUCTURE AND UP RIMS ATTACHED. RIMS HAVE CHANNEL FOR ATTACHING WINDOW; DOORS ARE NOT FOR WAGON OR COUPE Each 225.00 10
V-106 71-73 FRONT BUMPER, FIBERGLASS (ups ok)   119.95 2
V-106A 71-73 REAR BUMPER, FIBERGLASS (ups ok)   119.95 2
V-203 74-77 FRONT BUMPER, FIBERGLASS (ups ok)   129.95 3
V-204 74-77 REAR BUMPER, FIBERGLASS (ups ok)   129.95 3
V-105 71-73 HATCH (PIN ON) P 159.95 6
V-105A 74-77 HATCH (PIN ON) P 159.95 6
VW-105* VEGA WAGON HATCH (not ups) P 169.95 7
V-104B 71-73 FRONT LOWER GRAVEL PAN NO LIGHT HOLES (ups ok)   99.95 3
V-107 PANEL BEHIND FRONT BUMPER (ups ok)   59.95 2
V-205 74-77 FRONT AIR DAM, (3 inch Chin Spoiler) (FOR USE WITH V208 ONLY)   64.95 3
V-208 77 FRONT NOSE SECTION (FITS 74-77) not ups   310.00 11
V-209 74-77 STOCK FRONT LOWER GRAVEL PAN.   109.95 4
V-800 77 FRONT END (NOSE AND FENDERS 1-PIECE) Less Hood, Built in 3 inch "Chin Spoiler" and guilt in front bumper
NOTE: V-800 WILL FIT 71-77 VEGA
  520.00 28
V-805 77 FRONT KIT: V800 AND V127 HOOD (fits 71-77) *   710.00 50
V-810 77 FRONT KIT: V800 AND V101 STOCK HOOD (fits 71-77) *   710.00 45
V-832 77 FRONT KIT: V800 AND V132 HOOD (fits 71-77) *   780.00 52
V-886 77 FRONT KIT: V800 AND V286 HOOD (fits 71-77)  *   900.00 56
SPOILERS see below for photos
SP-103 71-73 VEGA 6-1/2" high front spoiler (ups ok) (55 in. Long) $75.00
SP-122 71-73 VEGA (TRANS AM TYPE) 3-1/2" High high front spoiler (ups ok) $75.00
NOTES: * All Weights are approximate
H- Has small steel inserts for mounting to hinges
P- Pin on only .
* add $55.00 crating charge for V-800
Part
No
1971 - 1977 Vega "Race Weight" Hoods Notes Racer
Net
($)
Wt
(Lb)
*
V-101T 71-77 Stock Hood, pin rear, front has bolts, Full Pin on   219.95 18
V-128T 2-1/4 Hood with Z-28 cowl induction scoop, Full Pin on   229.95 19
V-185T 4-3/4" high Cowl induction hood, Full Pin on   269.95 20
V-186T 6 inch high Cowl induction hood, Full Pin on   369.95 22
V-187T 7 inch high Cowl induction hood, Full Pin on   379.95 23
V-189T 9 inch high Cowl induction hood, Full Pin on   419.95 25
V-18X 10 inch high cowl induction hood for 1971 to 1977 Vega p 579.00 25
V-127T HOOD WITH 5" SNORKEL, Full Pin on   319.95 22
V-127ATT HOOD WITH AT475 AERO TOP SNORKEL 7" HIGH, Full Pin on   329.95 22
V-132T HOOD WITH 9" 3-DEGREE WINDSHIELD SCOOP(V132 HAS SCOOP AT 24" FROM BACK OF HOOD (V132 HAS 7" HIGH CARB CLEARANCE AT BACK OF HOOD), Full Pin on   349.95 26
V-286T HOOD WITH AERODYNAMIC SCOOP ATTACHED 8" HIGH, Full Pin on   480.00 28
V-486T HOOD WITH AERODYNAMIC SCOOP (SC204) ATTACHED 8", Full Pin on   480.00 28

PICTURES AND FURTHER INFORMATION FOR
VEGA 71 - 77
can be viewed by scrolling down or clicking part number above.
ABOUT | TECH INFO | Q&A  | CATALOG | SHIPPING | CONTACT | HOW to ORDER
index.gif (1853 bytes) GetCatalog.gif (3117 bytes) ShipCharges.gif (2148 bytes) online3.gif (4005 bytes)

This stock replica hood is designed with a full inner structure to insure that it will not "bow" upward at high speed. It comes without hinge attachments, which are available at extra charge. This hood can be used for bonding in the scoop of your choice.


 UP22.com the web's giant-giant site for quality fiberglass. Customers agree, fit, price, quality all come together at UP22.com. Please visit UP22.com frequently to see updates, specials and new items. Or visit our factory in Hesperia CA. You can pick up items (call ahead) or just browse our huge factory. You can request to see our lay-up shop and see how our products are made! New scoops are being added to our product line. Check with UP22.com

Vega cowl induction. Open in rear to allow cold air from windshield to enter engine compartment. This increases power and mileage. Designed to allow extra carb clearance (2-1/4"). Molded edge on all 4 sides to insure perfect fit. Smooth grey gelcoat surface for lasting durability. Complete fiberglass inner structure (similar to original GM). Small steel threaded inserts are molded in (front) for attachment to original hinges is desired. Bolts included.

V-185 4-3/4" high cowl induction. Features smooth gel coat surface, complete fiberglass inner structure (similar to original GM). Small steel threaded inserts are molded in for attachment to original hinges is desired. Bolts included.





V-185T same as V185 but has minimal inner structure to reduce weight.
4 pins required for installation of V185T.

Front fiberglass bumper. To reduce weight but still keep the stock appearance. This bumper will bolt to original locations and is made from highest quality fiberglass construction. Can be painted flat black or painted to match the car.
o

This replaces standard lower splash pan and has light holes blanked off. Lights can not be used. Reverse flanges are built in for easy mounting to original locations. Made from durable hand-laid fiberglass to resist cracking and fatigue. This panel is for racing use only.

This is the early Vega hatch designed for racing. Built with very little inner structure and must be pinned or `Dzused' in place. Molded edges all around insure a perfect fit. Vents blanked off. See VW105 on page 70 for Vega Wagon hatch.

For extra clearance and the proper funneling of air to your carburetors, this hood is finished with the base of the snorkel built into the hood. Because of the Vega's natural hump in the hood, the scoop measures 7" in front and 5" at the carburetor. Yet the scoop is not angled. Molded edges on 4 sides insure a perfect fit.

For maximum racing weight reduction we highly recommend fiberglass doors. Unlimited's Vega doors have full built-in upper frame for easy mounting of Lexan windows. Full inner panel allows the mounting of your stock hinges, latches, handles and upholstery door panels.

A full windshield length snorkel offers that extra clearance needed when a single four is on a tunnel ram manifold. Will also work with 2 fours on a tunnel, if engine is moved back at least 3". Scoop top is supplied along with hood. Has inner structure for strength. Made from highest quality materials for low weight.

Rear fiberglass bumper replacement. Weighs less than 2 pounds but is very durable. All bumpers have smooth grey gelcoat for easy painting. Bolts to original brackets.

This panel is the filler behind the front bumper. It runs the full width of the car and bolts to original places. Made from all hand-laid fiberglass to outlast original factory panel.

Start with V127, remove the upper snorkel box, bolt on Unlimited's exclusively designed aero-top (AT475), and presto, you have modernized!


 UP22.com the web's giant-giant site for quality fiberglass. Customers agree, fit, price, quality all come together at UP22.com. Please visit UP22.com frequently to see updates, specials and new items. Or visit our factory in Hesperia CA. You can pick up items (call ahead) or just browse our huge factory. You can request to see our lay-up shop and see how our products are made! New scoops are being added to our product line. Check with UP22.com

Aero scoops are taking over. This smoothly styled unit will certainly enhance the looks of any Vega, yet is very functional. Scoop is 44" long (40" version available upon request, see V486). Height is 8". Open underneath for maximum clearance.

Similar to V286 but with the smaller version of aerodynamic scoop (40" long).  Overall height is 8".  Inner bracing for low weight and rigidity.



Simplicity and low weight are the number one factors for choosing this wraparound front end. Can be mounted to stock or tube chassis. Designed to work with any of Unlimited's hoods or any hood made to stock width and length. Lights can be mounted to built in light buckets. Grill is blanked off (can be slotted for air flow if desired). Specially designed 'built in' front bumper to give 'stock' look.
Built in 3 inch "Chin Spoiler".
74-77 Vega's can get a weight reduction with these fenders. They bolt to existing mounting locations and offer ding and dent resistance as well as rust prevention. They are constructed from highest quality 'glass materials and have durable gel coat surface.
This one piece nose with bumper has internal flanges for mounting to the fenders. Headlights can be installed and the grill is blanked off. We recommend the use of our V205 air dam with this piece. Grill can be slotted for desired air flow.
Vega wagon rear hatch. Has recessed flange for mounting Lexan window. This is a light weight pin on style. Molded edge around outer portion of window frame insures a perfect fit.
Front fiberglass 74-77 Vega bumper. Can be used for street or strip. Bolts to original locations and can be easily painted or remain 'grey'. Unlimited's exclusively formulated gel coat surface does not require painting. It will last many years without surface degradation.
This lower front air dam (Chin Spoiler) is designed to be used with our V208 nose only and will not work with a stock front end. It includes built in mounting flanges for mating up to the fenders. Height is 3".

Rear bumper designed for racing, but can bolt to original brackets. Will not withstand any crashes but will give the stock look, and reduce weight. Can be painted flat black or color of car.

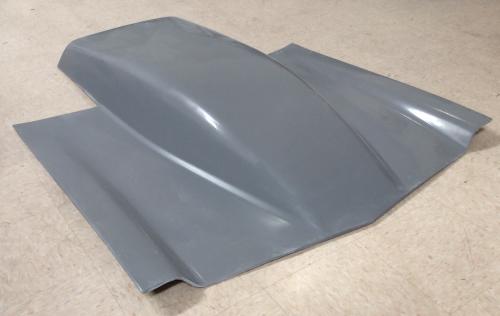

V-18X
10 inch high cowl induction hood for Vega.
Features smooth gray gel coat finish.
If you have moto-max in your Vega....you need
this hood.


9" scoop (V-189)

The original GM plastic doesn't hold up very well. Replace your front splash pan with dent and rust resistant fiberglass. This piece will bolt to stock locations. Light sanding is all that is needed to prep for paint.



V-185 4-3/4 High Cowl Induction Hood

 UP22.com the web's giant-giant site for quality fiberglass. Customers agree, fit, price, quality all come together at UP22.com. Please visit UP22.com frequently to see updates, specials and new items. Or visit our factory in Hesperia CA. You can pick up items (call ahead) or just browse our huge factory. You can request to see our lay-up shop and see how our products are made! New scoops are being added to our product line. Check with UP22.com

SP-122
Trans Am style. Grey gel coat finish. Top edge has mounting flange. 3-1/2 inches high. Ends wrap around.
SP-103
Grey gel coat finish. Top edge has mounting flange. 6-1/2 inches high. Ends wrap around.

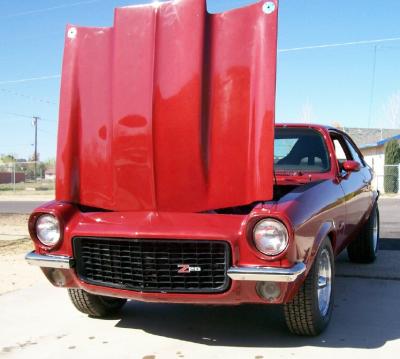

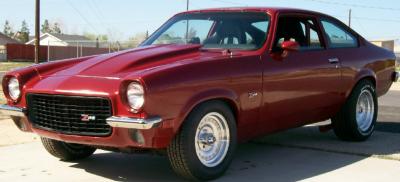

V128 (2-1/4" high cowl induction hood)

Mounts to hinges in the front ---->

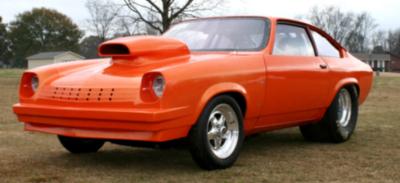

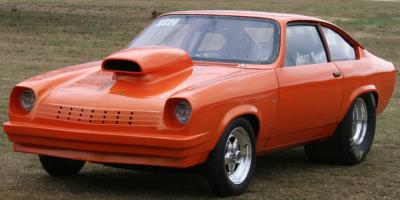

V800 (wrap around front end) with V101 (hood) and SC210 Scoop
Chevy Vega from Birmingham Alabama


Many customers send us photos of their projects
